FORGEVENT

FORGED VALVE

190

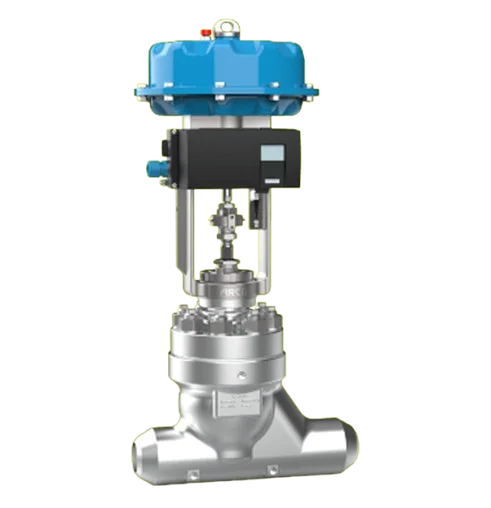

FORGEVENT Forged valve are made of forged solid material or die forged bodies.ARCA forged valves are made from a forged block or a dye-forged housing. Defining characteristics are the large selection of housing materials and the resulting increase in structural safety. Forged control valves are especially used
in conjunction with welded ends, since they can be connected directly to the piping here. The internals also follow the basic clamped principle of the ECOTROL series

PRODUCT ATTACHMENTS

Datasheet

FORGEVENT Forged valve

DETAILS

Series 190
DN 15 – DN 65 / 1/2“ – 2 1/2“
PN 100 – PN 720
ANSI Class 600 – 4500
Temperature range -29 °C to 650 °C

FORGEVENT Forged valve are made of forged solid material or die forged bodies. The special features are the large selection of housing materials and the associated material strength and homogeneity. The control valve is especially used with welded ends, as it can be connected directly to the pipeline. The trims are subject to the clamped basic principle of the ECOTROL® series, making maintenance very easy. The bonnet, which is fixed in the force bypass in our forged valves, offers the option of attaching any ARCA actuator. All this so that high-pressure control remains in a controlled “flow”.
